ENDOSCOPY LIGHT SOURCE 7100



A HIGHLY EFFICIENT LED FIBER-OPTIC LIGHT SOURCE

The Cymo LED endoscopy light source 7100 has a very high efficiency and a very long life expectancy. It is intended to substitute halogen lamp or xenon fiber optical illuminators. The unparalleled long life time (> 50,000 hours, longer than 250 halogen lamps or 100 xenon lamps) makes the LED light source the most cost-efficient illuminator, and results in the fact that changing the lamp is never needed. The Cymo LED light source 7100 is a Super Silent product. The 7100 LED light source generates no more than 30dB(A) airborne noise, four times quieter than other traditional products. The airborne noise is hardly audible, preventing the annoying noise in the operation room and providing a comfortable operating environment.

High intensity illumination

With the cutting-edge LED technology and innovative fiber optical design, the 7100 light source can deliver much more light than a 250W halogen lamp and comparable with a 180W or even a 300W xenon lamp. With this light intensity, the light source can be used in most endoscopy applications. This energy saving illumination product will definitely be the future golden standard.

Unparalleled long life time of the LED lamp

The LED lamp in the 7100 light source has more than 50,000 hour life time, longer than 250 halogen lamps or 100 Xenon lamps. The unparalleled long life LED solves the problem that many sellers have to spend a lot on traveling just for changing a tiny lamp for the anxious waiting doctors. The LED lamp will emit endless high intensity light without any pause or interrupt, and never be burned out suddenly as a halogen lamp. This advantage greatly reduces the chance of accidents caused by illuminating interruption during operation. greatest operational flexibility to the users.

  • Cosmos Surgical Equipments

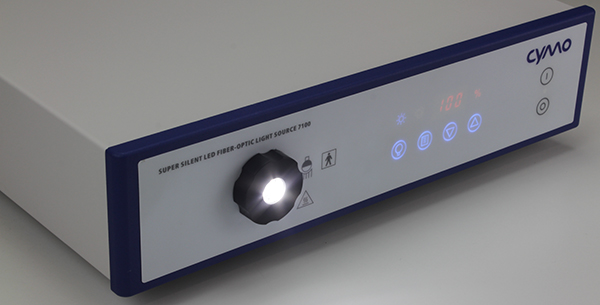

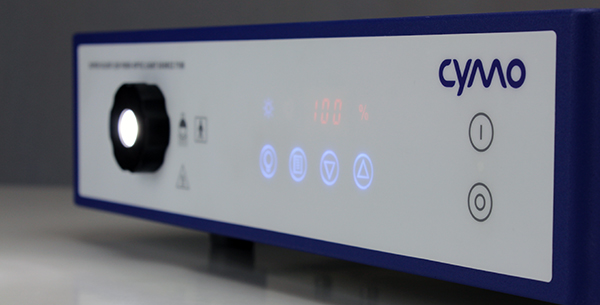

    LED 7100 Front Panel
  • Cosmos Surgical Equipments

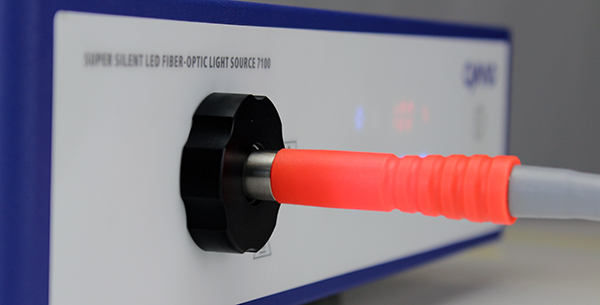

    LED 7100 Light Guide Connection

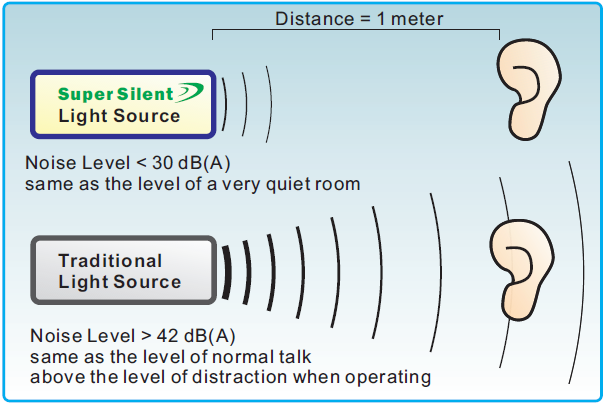

Super Silent product

  • Airborne noise in the operation and examination room generated by traditional light sources sometimes becomes a very annoying problem.
    This noise pollution may bring a potential risk to influence the operation and diagnosis.With its unique design, the 7100 light source operates at a very quiet condition. The generated noise is lower than 30dB(A), four times lower than other traditional products.
  • Cosmos Surgical Equipments

Manual or automatic light intensity adjustment

The LED light source provides two means of dimming light: the light can be dimmed by manual adjustment with the control button on the front panel; alternatively, the output light intensity can be adjusted automatically depending on the input composite video signal of standard definition or Y signal of high definition video through the BNC connector on the rear panel of the light source.

  • Cosmos Surgical Equipments

Consistent color temperature when dimming

In contrast to a halogen lamp, the color temperature of the Cymo 7100 LED light source does not change when the light is dimmed or as the LED ages, resulting in a consistent visual appearance.

Exchangeable light guide adapter

The light source is equipped with a Storz compatible light guide connector. Optionally, ACMI, Olympus, and Wolf light guide connectors are available.

  • Cosmos Surgical Equipments
  • Cosmos Surgical Equipments

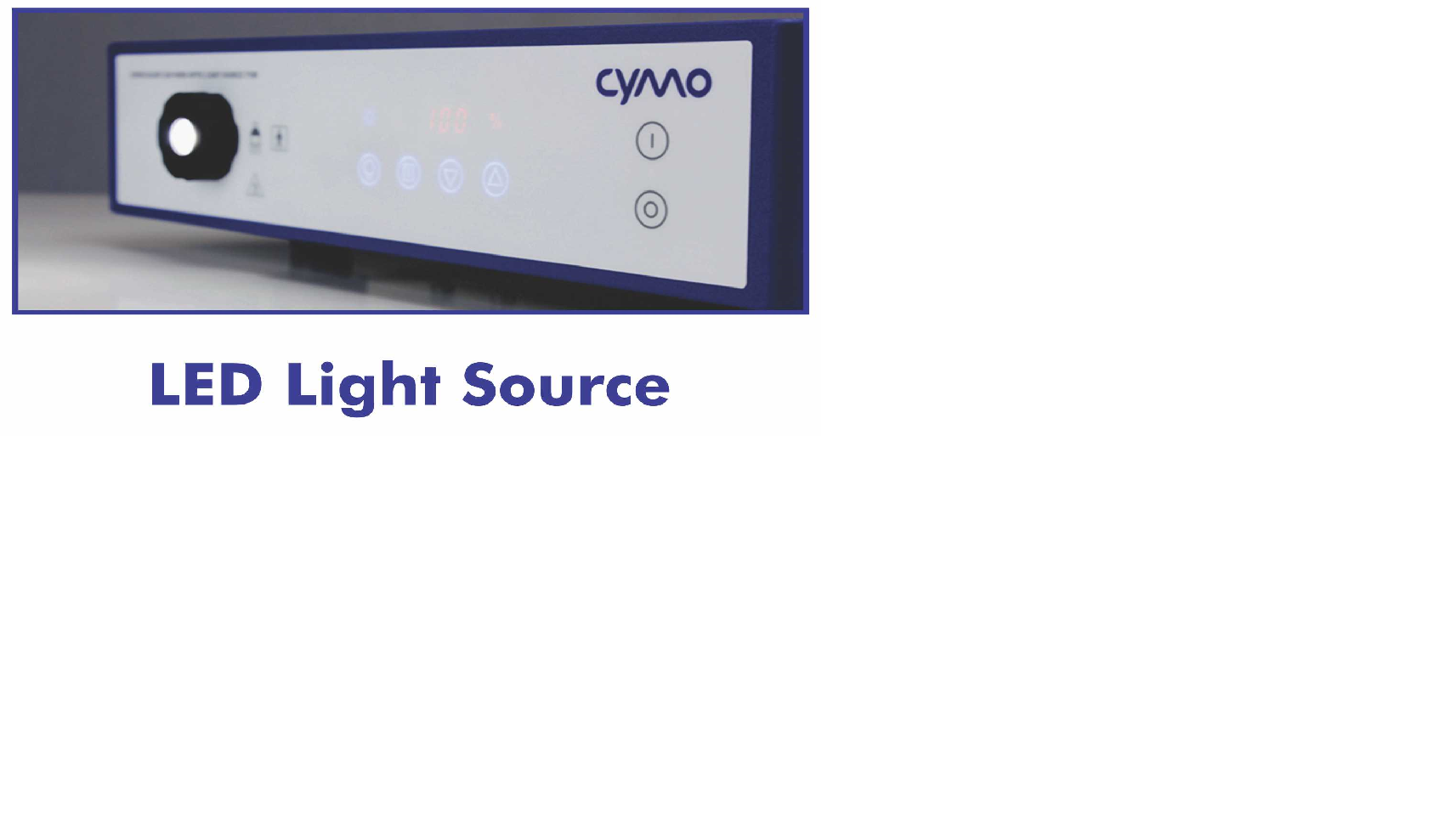

LED LIGHT SOURCE

  • Cosmos Surgical Equipments

  • TECHNICAL PARAMETERS

  • External power supply:100-240V/AC 50/60 HZ

  • LED power:120w

  • Color temperature:5000k-6500k

  • Intensity:110,400Lx

  • Luminous flux:2484Lm

  • Noise:less than 55db

  • Shell temperature:less than 55C

  • Safe type:I kind;BF type

  • BENEFITS INCLUDE

  • High brightness is comparable to 350W traditional xenon light source.

  • Remote control:you could adjust intensity with the remote controller ,so you could control the product just like controlling a TV ,very convenient.

  • Long life,it could last 60000 hours max,120 times of xenon,so you do not need to replace the bulb for years.

  • Perfect color temperature 5000k to 6500k,color rendering is over 70

  • It provides a consistent color temperature even after very long time,so you could get a consistent visual effect.

  • Does not emit light in UV or IR

  • Customized connector,it accepts fiber light guides with active areas randing from 3mm to 10mm diameter.

  • It saves energy for more than 50%.

  • Enviromentally friendly.

  • Friendly design.

  • Max power:120W.
